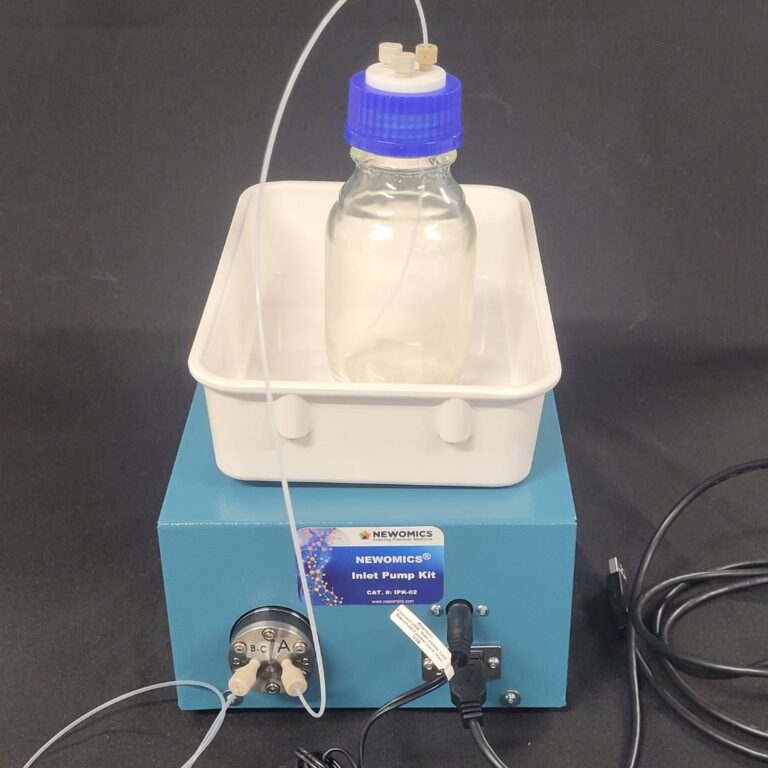

Inlet Pump Kit

The Newomics inlet pump kit is designed to enable the unique post-column inlet (PCI) functions of the Newomics MEA chip and M3 emitter on the DuoESI/UniESI ion source system. When used in forward flow mode, Newomics inlet pump provides a high-pressure pumping system that delivers a stable direct infusion of solvents from the nanoflow to the microflow rates (50 nL/min – 10 μL/min) for PCI of the MEA chip. When used in reverse flow mode, the inlet pump provides the vent function to divert the flow to the waste.

Request QuoteAsk a Question

The Newomics inlet pump kit is designed to enable the unique post-column inlet (PCI) functions of the Newomics MEA chip and M3 emitter on the DuoESI/UniESI ion source system. When used in forward flow mode, Newomics inlet pump provides a high-pressure pumping system that delivers a stable direct infusion of solvents from the nanoflow to the microflow rates (50 nL/min – 10 μL/min) for PCI of the MEA chip. When used in reverse flow mode, the inlet pump provides the vent function to divert the flow to the waste.

Request QuoteAsk a Question

Product Details

  • Features & Benefits
  • Specifications
  • Literature

    • Features & Benefits

    • Enable post-column addition and reaction for LCMS in an easy-to-use kit format.
    • Achieve post-column addition and reaction for both nanoflow and microflow LCMS.
    • Improve the sensitivity, robustness, and reproducibility of nanoflow and microflow LCMS.
    • Expand the utilities of Newomics M3 emitters and MEA chips for emerging LCMS applications.

    Specifications

    ParameterSpecifications
    Product

    Newomics Inlet Pump Kit for MEA chips and M3 emitters

    Catalog #

    IPK-02

    Flow Rate

    0.05-10 μL/min
    (used with MEA chips)

    0.25-10 μL/min
    (used with M3 emitters)

    M3 Emitter

    E8N10MU01
    E8N20MU01
    E5N20MU01

    NanoViper Tubing

    1x 20 μm ID, 150 mm L
    2x 50 μm ID, 150 mm L

    Dispensing Flow Rate

    0.05 – 10 μL/min

    Internal Swet (dead) Volume

    < 0.1 μL

    Connection

    10-32 threaded fittings, standard for 1/16” tubing
    Compatible with nanoViper, nanoConnect, and nanoEase fittings

    Weight

    6.75 lb (3,060 g)

    Literature
